mauve::runtime::Component< SHELL, CORE, FSM > Class Template Reference

Component class. More...

#include <Component.hpp>

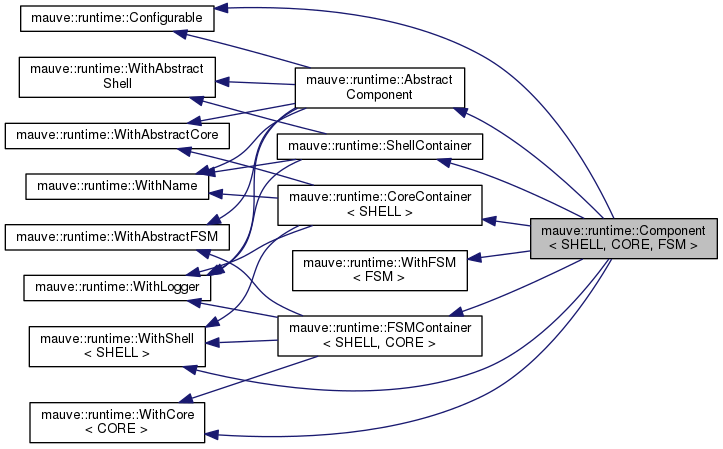

Inheritance diagram for mauve::runtime::Component< SHELL, CORE, FSM >:

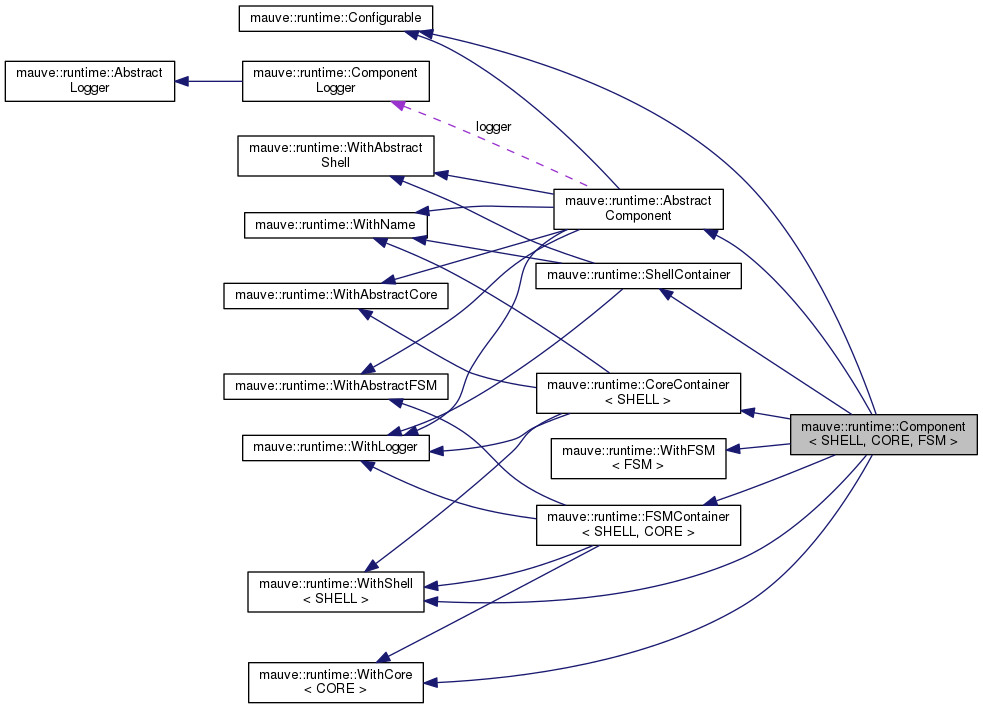

Collaboration diagram for mauve::runtime::Component< SHELL, CORE, FSM >:

Public Member Functions
	Component (Component const &component)=delete
void	cleanup () override
	Cleanup the object.
bool	cleanup_core () override
	Clean up the Core.
bool	cleanup_fsm () override
	Clean up the FSM.
bool	cleanup_shell () override
	Clean up the shell.
bool	clear () override
	Clear the component.
bool	clear_core () override
	Clear the Core.
bool	clear_fsm () override
	Clear the FSM.
bool	clear_shell () override
	Clear the shell.
bool	configure () override
	Configure the object.
bool	configure_core () override
	Configure the Core.
bool	configure_fsm () override
	Configure the FSM.
bool	configure_shell () override
	Configure th shell.
CORE &	core () const override
	Get the Core.
CORE *	core_ptr () const overridefinal
	Get a pointer to the Core.
AbstractState *	current_state () override
	Get component current State.
void	disconnect () override
	Disconnect the component.
FSM &	fsm () const override
	Get the FSM.
AbstractCore *	get_core () const override
	Get a pointer to the Core.
int	get_cpu () const override
	Get the cpu mapping of the component task. More...
AbstractFiniteStateMachine *	get_fsm () const override
	Get a pointer to the FSM.
int	get_priority () const override
	Get the priority of the component real-time task. More...
Shell *	get_shell () const override
	Get a pointer to the shell.
Task &	get_task () const
	Get the task executing this component.
time_ns_t	get_time () const override
	Get the component current time.
bool	is_activated () const override
	Check if the component is activated.
bool	is_configured () const override
	Get the configuration status of the configurable object. More...
bool	is_created () const override
	Check if the component is created.
bool	is_empty () const override
	Check if the component is empty (i.e. More...
bool	is_empty_core () const override
	Check if the Core is empty.
bool	is_empty_fsm () const override
	Check if the FSM is empty.
bool	is_empty_shell () const override
	Check if the shell is empty.
bool	is_running () const override
	Check if the component is running.
AbstractLogger &	logger () const override
	Get the logger.
template<typename... P>
bool	make (P...parameters)
template<typename S , typename C , typename F , typename... P>
bool	make (P...parameters)
template<typename... P>
bool	make_core (P...parameters)
template<typename C , typename... P>
bool	make_core (P...parameters)
template<typename... P>
bool	make_fsm (P...parameters)
template<typename F , typename... P>
bool	make_fsm (P...parameters)
template<typename... P>
bool	make_shell (P...parameters)
template<typename S , typename... P>
bool	make_shell (P...parameters)
Component *	operator& ()=delete
template<typename C , typename... P>
bool	replace_core (P...parameters)
template<typename F , typename... P>
bool	replace_fsm (P...parameters)
template<typename S , typename... P>
bool	replace_shell (P...parameters)
bool	set_cpu (int cpu) override
	Set the affinity of the task of the component to a single processor. More...
bool	set_priority (int priority) override
	Sets the real-time task priority. More...
void	set_task (Task *task) override
	Set the task executing this component.
SHELL &	shell () const override
	Get the shell.
bool	step () override
	Make one step on the component FSM.
Public Member Functions inherited from mauve::runtime::AbstractComponent
	AbstractComponent (std::string const &name)
	Constructor. More...
virtual	~AbstractComponent ()
	Destructor.
std::string	name () const overridefinal
	Get component name.
std::string	type_name () const
	Get component type name.

Friends
class	Architecture

Additional Inherited Members
Protected Attributes inherited from mauve::runtime::AbstractComponent
ComponentLogger *	logger

Detailed Description

template<typename SHELL, typename CORE, typename FSM>
class mauve::runtime::Component< SHELL, CORE, FSM >

Component class.

A component is made of a Shell, a Core, and a FiniteStateMachine

Template Parameters

SHELL	Shell type
CORE	Core type
FSM	FiniteStateMachine type

Member Function Documentation

template<typename SHELL, typename CORE, typename FSM>

int mauve::runtime::Component< SHELL, CORE, FSM >::get_cpu ( ) const

inlineoverridevirtual

Get the cpu mapping of the component task.

Returns

cpu mapping

Implements mauve::runtime::AbstractComponent.

template<typename SHELL, typename CORE, typename FSM>

int mauve::runtime::Component< SHELL, CORE, FSM >::get_priority ( ) const

inlineoverridevirtual

Get the priority of the component real-time task.

Returns

priority

Implements mauve::runtime::AbstractComponent.

template<typename SHELL , typename CORE , typename FSM >

bool mauve::runtime::Component< SHELL, CORE, FSM >::is_configured ( ) const

overridevirtual

Get the configuration status of the configurable object.

Returns

true if the object is configured

Implements mauve::runtime::Configurable.

template<typename SHELL , typename CORE , typename FSM >

bool mauve::runtime::Component< SHELL, CORE, FSM >::is_empty ( ) const

overridevirtual

Check if the component is empty (i.e.

not built)

Implements mauve::runtime::AbstractComponent.

template<typename SHELL , typename CORE , typename FSM >

bool mauve::runtime::Component< SHELL, CORE, FSM >::set_cpu ( int  cpu )

overridevirtual

Set the affinity of the task of the component to a single processor.

The cpu mapping can be changed iff the component is neither activated nor running. The default value is 0. Cpu id is checked.

Parameters

cpu	cpu mapping of the component task (0..nproc-1)

Returns

true if cpu mapping can be changed.

Implements mauve::runtime::AbstractComponent.

template<typename SHELL , typename CORE , typename FSM >

bool mauve::runtime::Component< SHELL, CORE, FSM >::set_priority ( int  priority )

overridevirtual

Sets the real-time task priority.

1 is the lowest priority and 99 the most prioritary. The priority can be changed iff the component is neither activated nor running. The default value is 1.

Parameters

priority

in 1-99

Implements mauve::runtime::AbstractComponent.
