mauve::runtime::AbstractComponent Class Reference

Abstract Component class. More...

#include <AbstractComponent.hpp>

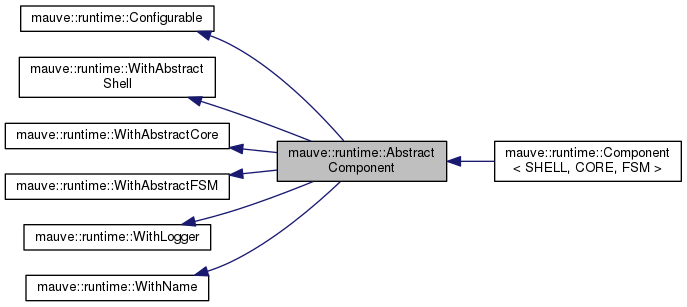

Inheritance diagram for mauve::runtime::AbstractComponent:

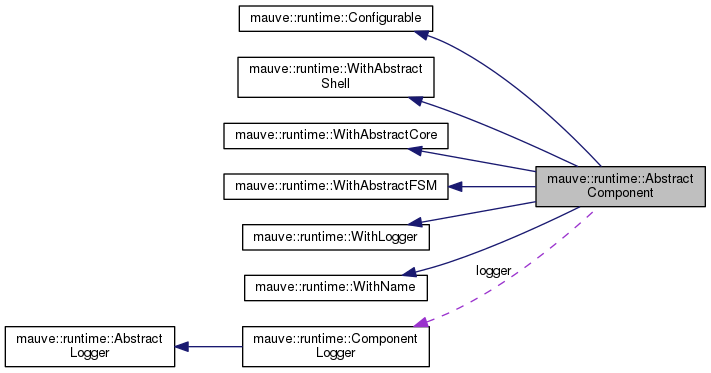

Collaboration diagram for mauve::runtime::AbstractComponent:

Public Member Functions
	AbstractComponent (std::string const &name)
	Constructor. More...
virtual	~AbstractComponent ()
	Destructor.
virtual bool	clear ()=0
	Clear the component.
virtual AbstractState *	current_state ()=0
	Get component current State.
virtual void	disconnect ()=0
	Disconnect the component.
virtual int	get_cpu () const =0
	Get the cpu mapping of the component task. More...
virtual int	get_priority () const =0
	Get the priority of the component real-time task. More...
virtual time_ns_t	get_time () const =0
	Get the component current time.
virtual bool	is_activated () const =0
	Check if the component is activated.
virtual bool	is_created () const =0
	Check if the component is created.
virtual bool	is_empty () const =0
	Check if the component is empty (i.e. More...
virtual bool	is_running () const =0
	Check if the component is running.
std::string	name () const overridefinal
	Get component name.
virtual bool	set_cpu (int cpu)=0
	Set the affinity of the task of the component to a single processor. More...
virtual bool	set_priority (int priority)=0
	Sets the real-time task priority. More...
virtual bool	step ()=0
	Make one step on the component FSM.
std::string	type_name () const
	Get component type name.
Public Member Functions inherited from mauve::runtime::Configurable
virtual void	cleanup ()=0
	Cleanup the object.
virtual bool	configure ()=0
	Configure the object.
virtual bool	is_configured () const =0
	Get the configuration status of the configurable object. More...
Public Member Functions inherited from mauve::runtime::WithAbstractShell
virtual bool	cleanup_shell ()=0
	Clean up the shell.
virtual bool	configure_shell ()=0
	Configure th shell.
virtual Shell *	get_shell () const =0
	Get a pointer to the shell.
virtual bool	is_empty_shell () const =0
	Check if the shell is empty.
Public Member Functions inherited from mauve::runtime::WithAbstractCore
virtual bool	cleanup_core ()=0
	Clean up the Core.
virtual bool	configure_core ()=0
	Configure the Core.
virtual AbstractCore *	get_core () const =0
	Get a pointer to the Core.
virtual bool	is_empty_core () const =0
	Check if the Core is empty.
Public Member Functions inherited from mauve::runtime::WithAbstractFSM
virtual bool	cleanup_fsm ()=0
	Clean up the FSM.
virtual bool	configure_fsm ()=0
	Configure the FSM.
virtual AbstractFiniteStateMachine *	get_fsm () const =0
	Get a pointer to the FSM.
virtual bool	is_empty_fsm () const =0
	Check if the FSM is empty.
Public Member Functions inherited from mauve::runtime::WithLogger
virtual AbstractLogger &	logger () const =0
	Get the logger.

Protected Attributes
ComponentLogger *	logger

Friends
class	Task

Detailed Description

Abstract Component class.

Constructor & Destructor Documentation

mauve::runtime::AbstractComponent::AbstractComponent

(

std::string const &

name

)

Constructor.

Parameters

name	component name

Member Function Documentation

virtual int mauve::runtime::AbstractComponent::get_cpu ( ) const

pure virtual

Get the cpu mapping of the component task.

Returns

cpu mapping

Implemented in mauve::runtime::Component< SHELL, CORE, FSM >.

virtual int mauve::runtime::AbstractComponent::get_priority ( ) const

pure virtual

Get the priority of the component real-time task.

Returns

priority

Implemented in mauve::runtime::Component< SHELL, CORE, FSM >.

virtual bool mauve::runtime::AbstractComponent::is_empty ( ) const

pure virtual

Check if the component is empty (i.e.

not built)

Implemented in mauve::runtime::Component< SHELL, CORE, FSM >.

virtual bool mauve::runtime::AbstractComponent::set_cpu ( int  cpu )

pure virtual

Set the affinity of the task of the component to a single processor.

The cpu mapping can be changed iff the component is neither activated nor running. The default value is 0. Cpu id is checked.

Parameters

cpu	cpu mapping of the component task (0..nproc-1)

Returns

true if cpu mapping can be changed.

Implemented in mauve::runtime::Component< SHELL, CORE, FSM >.

virtual bool mauve::runtime::AbstractComponent::set_priority ( int  priority )

pure virtual

Sets the real-time task priority.

1 is the lowest priority and 99 the most prioritary. The priority can be changed iff the component is neither activated nor running. The default value is 1.

Parameters

priority

in 1-99

Implemented in mauve::runtime::Component< SHELL, CORE, FSM >.
