mauve::runtime::AbstractState Class Reference

Abstract State class. More...

#include <AbstractState.hpp>

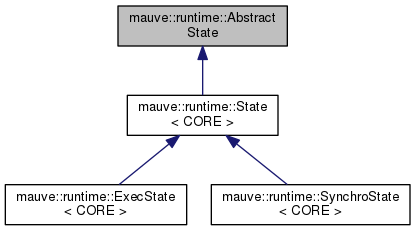

Inheritance diagram for mauve::runtime::AbstractState:

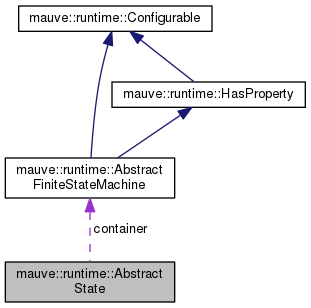

Collaboration diagram for mauve::runtime::AbstractState:

Public Member Functions
	AbstractState (AbstractState const &other)=delete
virtual time_ns_t	get_clock () const =0
	Get the clock value of the SynchroState "name". More...
virtual std::size_t	get_next_size () const =0
	Return the number of transitions.
virtual AbstractState *	get_next_state (int index) const =0
	Return the next state according to the index.
virtual bool	is_execution () const =0
	Check if the state is an Execution state.
virtual bool	is_synchronization () const =0
	Check if the state is a Synchronization state.
AbstractState &	operator= (AbstractState const &other)=delete
virtual bool	set_clock (time_ns_t clock)=0
	Change the clock value of the SynchroState "name". More...
virtual std::string	to_string () const =0
	Return the state as a string.

Public Attributes
friend	AbstractFiniteStateMachine
std::string const	name
	State name.

Protected Member Functions
	AbstractState (AbstractFiniteStateMachine *container, std::string const &name)

Protected Attributes
const AbstractFiniteStateMachine *	container

Detailed Description

Abstract State class.

Member Function Documentation

virtual time_ns_t mauve::runtime::AbstractState::get_clock ( ) const

pure virtual

Get the clock value of the SynchroState "name".

Returns

the clock value of the SynchroState or 0 if the state is not a SynchroState

Implemented in mauve::runtime::ExecState< CORE >, and mauve::runtime::SynchroState< CORE >.

virtual bool mauve::runtime::AbstractState::set_clock ( time_ns_t  clock )

pure virtual

Change the clock value of the SynchroState "name".

Returns

true if the FSM is not configured and if a SynchroState named "name" exists, false otherwise

Implemented in mauve::runtime::ExecState< CORE >, and mauve::runtime::SynchroState< CORE >.
