mauve::runtime::AbstractFiniteStateMachine Class Reference

A Finite State Machine describes the component behavior. More...

#include <AbstractFiniteStateMachine.hpp>

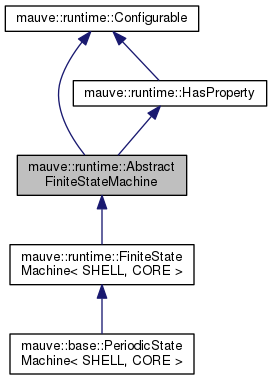

Inheritance diagram for mauve::runtime::AbstractFiniteStateMachine:

Collaboration diagram for mauve::runtime::AbstractFiniteStateMachine:

Public Member Functions
	AbstractFiniteStateMachine ()
	Default constructor. More...
virtual	~AbstractFiniteStateMachine ()
	Default destructor. More...
virtual std::string	core_type_name () const =0
	Get the type of the FSM core. More...
virtual AbstractState *	get_state (std::string const &name) const =0
	Get a state of the FSM by name. More...
virtual AbstractState *	get_state (int index) const =0
	Get a state of the FSM by state index. More...
virtual int	get_state_index (const AbstractState *state) const =0
	Get a index of state in the FSM. More...
virtual std::size_t	get_states_size () const =0
virtual std::string	shell_type_name () const =0
	Get the type of the FSM shell. More...
std::string	type_name () const
	Get the type of this FSM. More...
Public Member Functions inherited from mauve::runtime::Configurable
virtual void	cleanup ()=0
	Cleanup the object.
virtual bool	configure ()=0
	Configure the object.
virtual bool	is_configured () const =0
	Get the configuration status of the configurable object. More...
Public Member Functions inherited from mauve::runtime::HasProperty
const std::vector< AbstractProperty * >	get_properties () const
	Get the properties of the shell. More...
std::size_t	get_properties_size () const
AbstractProperty *	get_property (std::string const &name) const
AbstractProperty *	get_property (int index) const

Friends
template<typename S , typename C , typename F >
class	Component

Additional Inherited Members
Protected Member Functions inherited from mauve::runtime::HasProperty
template<typename T >
Property< T > &	mk_property (std::string const &name, T init_value)
	Create a new property. More...

Detailed Description

A Finite State Machine describes the component behavior.

Constructor & Destructor Documentation

mauve::runtime::AbstractFiniteStateMachine::AbstractFiniteStateMachine

(

)

Default constructor.

virtual mauve::runtime::AbstractFiniteStateMachine::~AbstractFiniteStateMachine ( )

virtual

Default destructor.

Member Function Documentation

virtual std::string mauve::runtime::AbstractFiniteStateMachine::core_type_name ( ) const

pure virtual

Get the type of the FSM core.

Returns

the type name of the core

Implemented in mauve::runtime::FiniteStateMachine< SHELL, CORE >.

virtual AbstractState* mauve::runtime::AbstractFiniteStateMachine::get_state ( std::string const &  name ) const

pure virtual

Get a state of the FSM by name.

Returns

the AbstractState named "name" if exists (nullptr if not)

Implemented in mauve::runtime::FiniteStateMachine< SHELL, CORE >.

virtual AbstractState* mauve::runtime::AbstractFiniteStateMachine::get_state ( int  index ) const

pure virtual

Get a state of the FSM by state index.

Returns

the AbstractState if exists (nullptr if not)

Implemented in mauve::runtime::FiniteStateMachine< SHELL, CORE >.

virtual int mauve::runtime::AbstractFiniteStateMachine::get_state_index ( const AbstractState *  state ) const

pure virtual

Get a index of state in the FSM.

Returns

index if exists (-1 if not)

Implemented in mauve::runtime::FiniteStateMachine< SHELL, CORE >.

virtual std::size_t mauve::runtime::AbstractFiniteStateMachine::get_states_size ( ) const

pure virtual

Returns

Get the states number

Implemented in mauve::runtime::FiniteStateMachine< SHELL, CORE >.

virtual std::string mauve::runtime::AbstractFiniteStateMachine::shell_type_name ( ) const

pure virtual

Get the type of the FSM shell.

Returns

the type name of the shell

Implemented in mauve::runtime::FiniteStateMachine< SHELL, CORE >.

std::string mauve::runtime::AbstractFiniteStateMachine::type_name

(

)

const

Get the type of this FSM.

Returns

the type name
