mauve::runtime::FiniteStateMachine< SHELL, CORE > Class Template Reference

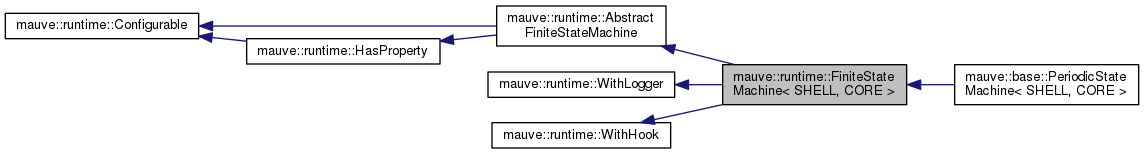

Inheritance diagram for mauve::runtime::FiniteStateMachine< SHELL, CORE >:

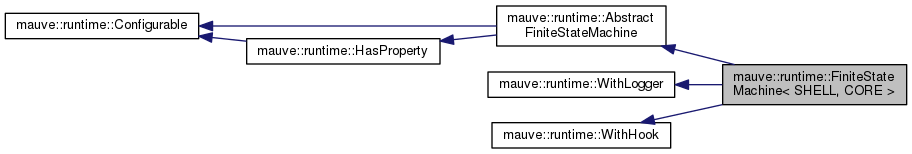

Collaboration diagram for mauve::runtime::FiniteStateMachine< SHELL, CORE >:

Public Types
using	Guard_t = typename ExecState< CORE >::Guard_t
using	Update_t = typename ExecState< CORE >::Update_t

Public Member Functions
	FiniteStateMachine (FiniteStateMachine const &other)=delete
bool	check_reachable () const
void	cleanup () overridefinal
	Cleanup the object.
bool	configure () overridefinal
	Configure the object.
std::string	core_type_name () const override
	Get the type of the FSM core. More...
AbstractState *	get_state (std::string const &name) const override
	Get a state of the FSM by name. More...
AbstractState *	get_state (int index) const override
	Get a state of the FSM by state index. More...
int	get_state_index (const AbstractState *state) const override
	Get a index of state in the FSM. More...
std::size_t	get_states_size () const override
bool	is_configured () const overridefinal
	Get the configuration status of the configurable object. More...
AbstractLogger &	logger () const override
	Get the logger.
FiniteStateMachine< SHELL, CORE > &	operator= (FiniteStateMachine< SHELL, CORE > const &other)=delete
std::string	shell_type_name () const override
	Get the type of the FSM shell. More...
Public Member Functions inherited from mauve::runtime::AbstractFiniteStateMachine
	AbstractFiniteStateMachine ()
	Default constructor. More...
virtual	~AbstractFiniteStateMachine ()
	Default destructor. More...
std::string	type_name () const
	Get the type of this FSM. More...
Public Member Functions inherited from mauve::runtime::HasProperty
const std::vector< AbstractProperty * >	get_properties () const
	Get the properties of the shell. More...
std::size_t	get_properties_size () const
AbstractProperty *	get_property (std::string const &name) const
AbstractProperty *	get_property (int index) const

Protected Member Functions
CORE &	core () const
ExecState< CORE > &	mk_execution (std::string const &name, Update_t fun)
SynchroState< CORE > &	mk_synchronization (std::string const &name, time_ns_t clock)
void	mk_transition (ExecState< CORE > &state, Guard_t guard, State< CORE > &next)
void	set_initial (State< CORE > &state)
void	set_next (State< CORE > &state, State< CORE > &next)
SHELL &	shell () const
Protected Member Functions inherited from mauve::runtime::HasProperty
template<typename T >
Property< T > &	mk_property (std::string const &name, T init_value)
	Create a new property. More...
Protected Member Functions inherited from mauve::runtime::WithHook
virtual void	cleanup_hook ()
	Hook function called when cleaning the shell. More...
virtual bool	configure_hook ()
	Hook function called when configuring the shell. More...

Friends
template<typename S , typename C , typename F >
class	Component

Member Function Documentation

template<typename SHELL , typename CORE >

std::string mauve::runtime::FiniteStateMachine< SHELL, CORE >::core_type_name ( ) const

overridevirtual

Get the type of the FSM core.

Returns

the type name of the core

Implements mauve::runtime::AbstractFiniteStateMachine.

template<typename SHELL , typename CORE >

AbstractState * mauve::runtime::FiniteStateMachine< SHELL, CORE >::get_state ( std::string const &  name ) const

overridevirtual

Get a state of the FSM by name.

Returns

the AbstractState named "name" if exists (nullptr if not)

Implements mauve::runtime::AbstractFiniteStateMachine.

template<typename SHELL , typename CORE >

AbstractState * mauve::runtime::FiniteStateMachine< SHELL, CORE >::get_state ( int  index ) const

overridevirtual

Get a state of the FSM by state index.

Returns

the AbstractState if exists (nullptr if not)

Implements mauve::runtime::AbstractFiniteStateMachine.

template<typename SHELL , typename CORE >

int mauve::runtime::FiniteStateMachine< SHELL, CORE >::get_state_index ( const AbstractState *  state ) const

overridevirtual

Get a index of state in the FSM.

Returns

index if exists (-1 if not)

Implements mauve::runtime::AbstractFiniteStateMachine.

template<typename SHELL, typename CORE>

std::size_t mauve::runtime::FiniteStateMachine< SHELL, CORE >::get_states_size ( ) const

inlineoverridevirtual

Returns

Get the states number

Implements mauve::runtime::AbstractFiniteStateMachine.

template<typename SHELL, typename CORE>

bool mauve::runtime::FiniteStateMachine< SHELL, CORE >::is_configured ( ) const

inlinefinaloverridevirtual

Get the configuration status of the configurable object.

Returns

true if the object is configured

Implements mauve::runtime::Configurable.

template<typename SHELL , typename CORE >

std::string mauve::runtime::FiniteStateMachine< SHELL, CORE >::shell_type_name ( ) const

overridevirtual

Get the type of the FSM shell.

Returns

the type name of the shell

Implements mauve::runtime::AbstractFiniteStateMachine.
