mauve::runtime::Shell Class Reference

A Shell is the interface of a component. More...

#include <Shell.hpp>

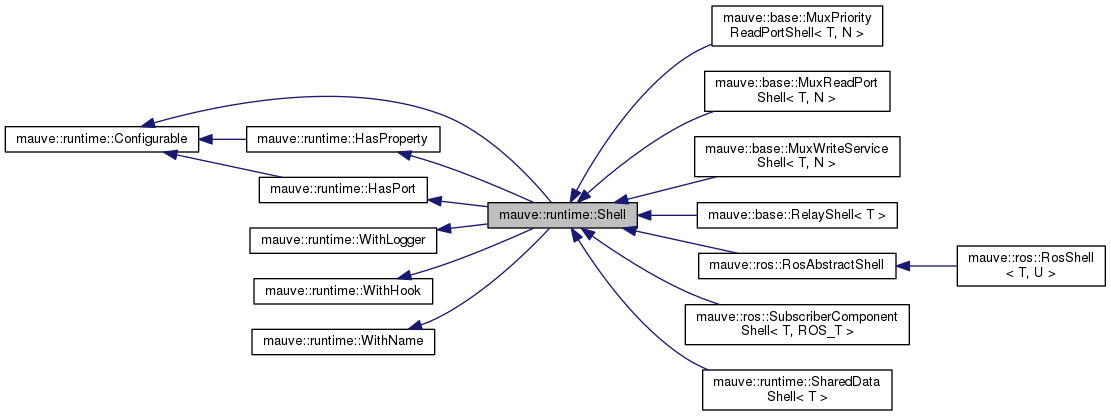

Inheritance diagram for mauve::runtime::Shell:

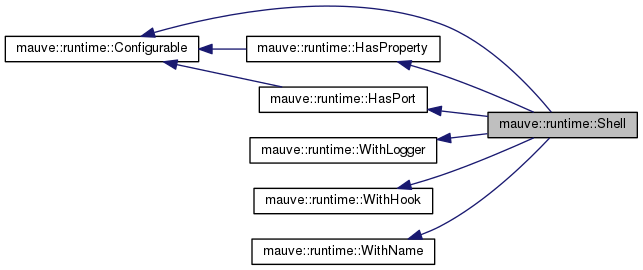

Collaboration diagram for mauve::runtime::Shell:

Public Member Functions
	Shell (const Shell &shell)=delete
	Copy constructor. More...
void	cleanup () overridefinal
	Cleanup the object.
bool	configure () overridefinal
	Configure the object.
bool	is_configured () const overridefinal
	Get the configuration status of the configurable object. More...
AbstractLogger &	logger () const override
	Get the logger.
virtual std::string	name () const overridefinal
	Get Component name.
void	print_model (std::ostream &out) const
	Print the Shell model. More...
std::string	type_name () const
	Get the Shell type name. More...
Public Member Functions inherited from mauve::runtime::HasProperty
const std::vector< AbstractProperty * >	get_properties () const
	Get the properties of the shell. More...
std::size_t	get_properties_size () const
AbstractProperty *	get_property (std::string const &name) const
AbstractProperty *	get_property (int index) const
Public Member Functions inherited from mauve::runtime::HasPort
void	disconnect ()
AbstractPort *	get_port (std::string const &name) const
AbstractPort *	get_port (int index) const
const std::vector< AbstractPort * >	get_ports () const
	Get the ports of the shell. More...
std::size_t	get_ports_size () const

Protected Member Functions
	Shell ()
	Default constructor. More...
virtual	~Shell () noexcept
	Default destructor. More...
Protected Member Functions inherited from mauve::runtime::HasProperty
template<typename T >
Property< T > &	mk_property (std::string const &name, T init_value)
	Create a new property. More...
Protected Member Functions inherited from mauve::runtime::HasPort
template<typename R , typename... P>
CallPort< R, P... >	mk_call_port (std::string const &name, R default_value)
EventPort &	mk_event_port (std::string const &name)
template<typename PORT , typename... PARAM>
PORT &	mk_port (std::string const &name, PARAM...parameters)
	Create a new port in this shell. More...
template<typename T >
ReadPort< T > &	mk_read_port (std::string const &name, T default_value)
template<typename T >
WritePort< T > &	mk_write_port (std::string const &name)
Protected Member Functions inherited from mauve::runtime::WithHook
virtual void	cleanup_hook ()
	Hook function called when cleaning the shell. More...
virtual bool	configure_hook ()
	Hook function called when configuring the shell. More...

Friends
template<typename S , typename C , typename F >
class	Component
template<typename S , typename C , typename I >
class	Resource

Detailed Description

A Shell is the interface of a component.

A Shell declares elements that are visible at the architecture level in order to have the components interact one with the other.

Constructor & Destructor Documentation

mauve::runtime::Shell::Shell ( const Shell &  shell )

delete

Copy constructor.

Remarks

deleted

mauve::runtime::Shell::Shell ( )

protected

Default constructor.

virtual mauve::runtime::Shell::~Shell ( )

protectedvirtualnoexcept

Default destructor.

Member Function Documentation

bool mauve::runtime::Shell::is_configured ( ) const

inlinefinaloverridevirtual

Get the configuration status of the configurable object.

Returns

true if the object is configured

Implements mauve::runtime::Configurable.

void mauve::runtime::Shell::print_model

(

std::ostream &

out

)

const

Print the Shell model.

Parameters

out	the output stream in which the print is done

std::string mauve::runtime::Shell::type_name

(

)

const

Get the Shell type name.

Returns

the Shell type name
