mauve::runtime::HasPort Class Reference

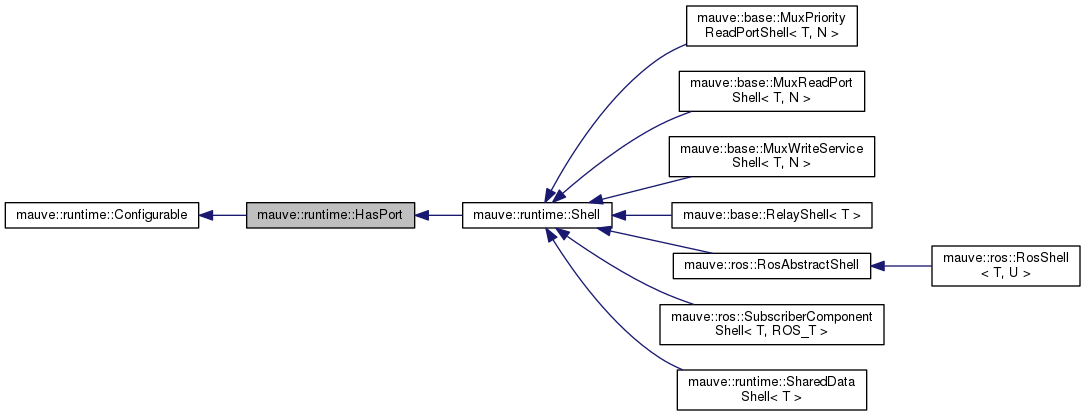

Inheritance diagram for mauve::runtime::HasPort:

Collaboration diagram for mauve::runtime::HasPort:

Public Member Functions
void	disconnect ()
AbstractPort *	get_port (std::string const &name) const
AbstractPort *	get_port (int index) const
const std::vector< AbstractPort * >	get_ports () const
	Get the ports of the shell. More...
std::size_t	get_ports_size () const
Public Member Functions inherited from mauve::runtime::Configurable
virtual void	cleanup ()=0
	Cleanup the object.
virtual bool	configure ()=0
	Configure the object.
virtual bool	is_configured () const =0
	Get the configuration status of the configurable object. More...

Protected Member Functions
template<typename R , typename... P>
CallPort< R, P... >	mk_call_port (std::string const &name, R default_value)
EventPort &	mk_event_port (std::string const &name)
template<typename PORT , typename... PARAM>
PORT &	mk_port (std::string const &name, PARAM...parameters)
	Create a new port in this shell. More...
template<typename T >
ReadPort< T > &	mk_read_port (std::string const &name, T default_value)
template<typename T >
WritePort< T > &	mk_write_port (std::string const &name)

Member Function Documentation

const std::vector<AbstractPort*> mauve::runtime::HasPort::get_ports

(

)

const

Get the ports of the shell.

Returns

a vector of ports

template<typename PORT , typename... PARAM>

PORT & mauve::runtime::HasPort::mk_port ( std::string const &  name, PARAM...  parameters  )

protected

Create a new port in this shell.

Template Parameters

PORT	Port type
PARAM	List of Port parameters types

Returns

a reference to a Port object

Parameters

name	name of the port
parameters	list of port parameters
