mauve::base::PeriodicStateMachine< SHELL, CORE > Struct Template Reference

Defines a Periodic State Machine. More...

#include <PeriodicStateMachine.hpp>

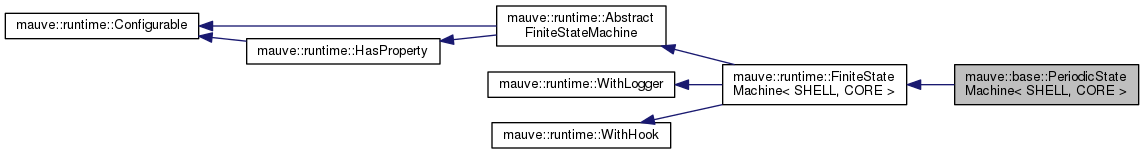

Inheritance diagram for mauve::base::PeriodicStateMachine< SHELL, CORE >:

Collaboration diagram for mauve::base::PeriodicStateMachine< SHELL, CORE >:

Public Attributes
runtime::Property< runtime::time_ns_t > &	period
	Property to set the PSM period. More...

Protected Member Functions
virtual bool	configure_hook () override
	Configure the PSM. More...
Protected Member Functions inherited from mauve::runtime::FiniteStateMachine< SHELL, CORE >
CORE &	core () const
ExecState< CORE > &	mk_execution (std::string const &name, Update_t fun)
SynchroState< CORE > &	mk_synchronization (std::string const &name, time_ns_t clock)
void	mk_transition (ExecState< CORE > &state, Guard_t guard, State< CORE > &next)
void	set_initial (State< CORE > &state)
void	set_next (State< CORE > &state, State< CORE > &next)
SHELL &	shell () const
Protected Member Functions inherited from mauve::runtime::HasProperty
template<typename T >
Property< T > &	mk_property (std::string const &name, T init_value)
	Create a new property. More...
Protected Member Functions inherited from mauve::runtime::WithHook
virtual void	cleanup_hook ()
	Hook function called when cleaning the shell. More...

Additional Inherited Members
Public Types inherited from mauve::runtime::FiniteStateMachine< SHELL, CORE >
using	Guard_t = typename ExecState< CORE >::Guard_t
using	Update_t = typename ExecState< CORE >::Update_t
Public Member Functions inherited from mauve::runtime::FiniteStateMachine< SHELL, CORE >
	FiniteStateMachine (FiniteStateMachine const &other)=delete
bool	check_reachable () const
void	cleanup () overridefinal
	Cleanup the object.
bool	configure () overridefinal
	Configure the object.
std::string	core_type_name () const override
	Get the type of the FSM core. More...
AbstractState *	get_state (std::string const &name) const override
	Get a state of the FSM by name. More...
AbstractState *	get_state (int index) const override
	Get a state of the FSM by state index. More...
int	get_state_index (const AbstractState *state) const override
	Get a index of state in the FSM. More...
std::size_t	get_states_size () const override
bool	is_configured () const overridefinal
	Get the configuration status of the configurable object. More...
AbstractLogger &	logger () const override
	Get the logger.
FiniteStateMachine< SHELL, CORE > &	operator= (FiniteStateMachine< SHELL, CORE > const &other)=delete
std::string	shell_type_name () const override
	Get the type of the FSM shell. More...
Public Member Functions inherited from mauve::runtime::AbstractFiniteStateMachine
	AbstractFiniteStateMachine ()
	Default constructor. More...
virtual	~AbstractFiniteStateMachine ()
	Default destructor. More...
std::string	type_name () const
	Get the type of this FSM. More...
Public Member Functions inherited from mauve::runtime::HasProperty
const std::vector< AbstractProperty * >	get_properties () const
	Get the properties of the shell. More...
std::size_t	get_properties_size () const
AbstractProperty *	get_property (std::string const &name) const
AbstractProperty *	get_property (int index) const

Detailed Description

template<typename SHELL, typename CORE>
struct mauve::base::PeriodicStateMachine< SHELL, CORE >

Defines a Periodic State Machine.

Template Parameters

SHELL	Shell type
CORE	Core type

Member Function Documentation

template<typename SHELL , typename CORE >

bool mauve::base::PeriodicStateMachine< SHELL, CORE >::configure_hook ( )

overrideprotectedvirtual

Configure the PSM.

Set the sync_state clock according to period.

Reimplemented from mauve::runtime::WithHook.

Member Data Documentation

template<typename SHELL, typename CORE>

runtime::Property<runtime::time_ns_t>& mauve::base::PeriodicStateMachine< SHELL, CORE >::period

Initial value:

=
      this->mk_property("period", runtime::sec_to_ns(1))

Property to set the PSM period.
