mauve::base::MuxReadPortShell< T, N > Struct Template Reference

Multiplexer shell with read ports. More...

#include <Mux.hpp>

Inheritance diagram for mauve::base::MuxReadPortShell< T, N >:

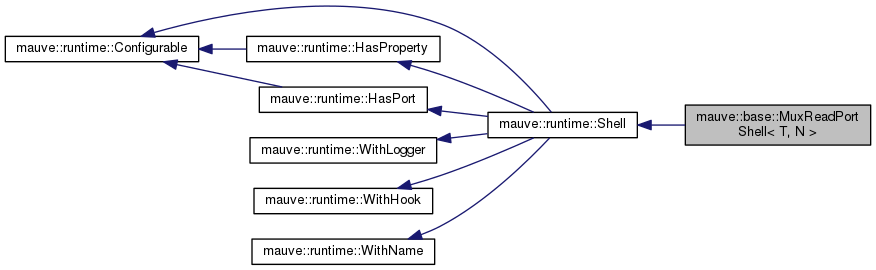

Collaboration diagram for mauve::base::MuxReadPortShell< T, N >:

Public Member Functions
	MuxReadPortShell ()
	Constructor. More...
Public Member Functions inherited from mauve::runtime::Shell
	Shell (const Shell &shell)=delete
	Copy constructor. More...
void	cleanup () overridefinal
	Cleanup the object.
bool	configure () overridefinal
	Configure the object.
bool	is_configured () const overridefinal
	Get the configuration status of the configurable object. More...
AbstractLogger &	logger () const override
	Get the logger.
virtual std::string	name () const overridefinal
	Get Component name.
void	print_model (std::ostream &out) const
	Print the Shell model. More...
std::string	type_name () const
	Get the Shell type name. More...
Public Member Functions inherited from mauve::runtime::HasProperty
const std::vector< AbstractProperty * >	get_properties () const
	Get the properties of the shell. More...
std::size_t	get_properties_size () const
AbstractProperty *	get_property (std::string const &name) const
AbstractProperty *	get_property (int index) const
Public Member Functions inherited from mauve::runtime::HasPort
void	disconnect ()
AbstractPort *	get_port (std::string const &name) const
AbstractPort *	get_port (int index) const
const std::vector< AbstractPort * >	get_ports () const
	Get the ports of the shell. More...
std::size_t	get_ports_size () const

Public Attributes
std::array< runtime::ReadPort< T > *, N >	read_ports
	Array of read ports. More...
runtime::Property< int > &	select = mk_property("select", 1)
	Property to select which input to forward. More...

Additional Inherited Members
Protected Member Functions inherited from mauve::runtime::Shell
	Shell ()
	Default constructor. More...
virtual	~Shell () noexcept
	Default destructor. More...
Protected Member Functions inherited from mauve::runtime::HasProperty
template<typename T >
Property< T > &	mk_property (std::string const &name, T init_value)
	Create a new property. More...
Protected Member Functions inherited from mauve::runtime::HasPort
template<typename R , typename... P>
CallPort< R, P... >	mk_call_port (std::string const &name, R default_value)
EventPort &	mk_event_port (std::string const &name)
template<typename PORT , typename... PARAM>
PORT &	mk_port (std::string const &name, PARAM...parameters)
	Create a new port in this shell. More...
template<typename T >
ReadPort< T > &	mk_read_port (std::string const &name, T default_value)
template<typename T >
WritePort< T > &	mk_write_port (std::string const &name)
Protected Member Functions inherited from mauve::runtime::WithHook
virtual void	cleanup_hook ()
	Hook function called when cleaning the shell. More...
virtual bool	configure_hook ()
	Hook function called when configuring the shell. More...

Detailed Description

template<typename T, int N>
struct mauve::base::MuxReadPortShell< T, N >

Multiplexer shell with read ports.

Template Parameters

T	type of ports data
N	number of read ports to mux

Constructor & Destructor Documentation

template<typename T , int N>

mauve::base::MuxReadPortShell< T, N >::MuxReadPortShell

(

)

Constructor.

Member Data Documentation

template<typename T , int N>

std::array< runtime::ReadPort<T>*, N> mauve::base::MuxReadPortShell< T, N >::read_ports

Array of read ports.

template<typename T , int N>

runtime::Property<int>& mauve::base::MuxReadPortShell< T, N >::select = mk_property("select", 1)

Property to select which input to forward.
