mauve::base::MuxPriorityReadPortCoreWithStatus< T, N > Struct Template Reference

Priority Multiplexer shell for read ports with status. More...

#include <MuxPriorityWithStatus.hpp>

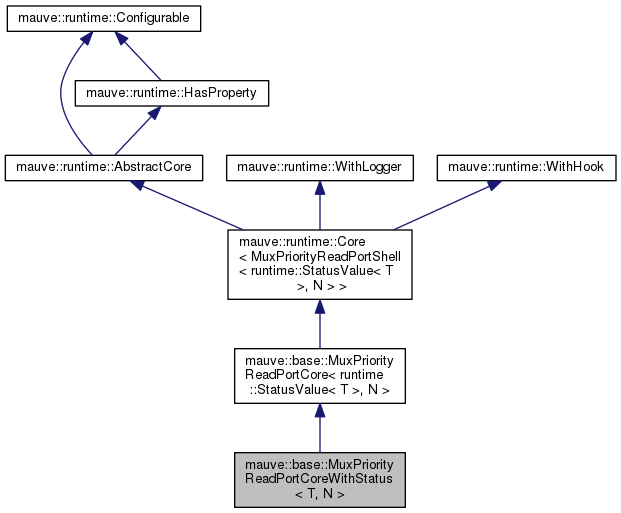

Inheritance diagram for mauve::base::MuxPriorityReadPortCoreWithStatus< T, N >:

Collaboration diagram for mauve::base::MuxPriorityReadPortCoreWithStatus< T, N >:

Public Member Functions
virtual bool	accept (const runtime::StatusValue< T > &) override
	Function to specify when to accept an incoming data. More...
Public Member Functions inherited from mauve::base::MuxPriorityReadPortCore< runtime::StatusValue< T >, N >
runtime::StatusValue< T >	read ()
	Read data.
Public Member Functions inherited from mauve::runtime::Core< MuxPriorityReadPortShell< runtime::StatusValue< T >, N > >
	Core (Core const &core)=delete
	Constructor by copy. More...
void	cleanup () overridefinal
	Cleanup the object.
bool	configure () overridefinal
	Configure the object.
std::string	container_name () const override
	Get the core container name.
bool	is_configured () const overridefinal
	Get the configuration status of the configurable object. More...
AbstractLogger &	logger () const override
	Get the logger.
Core &	operator= (Core const &core)=delete
	Copy operator. More...
std::string	shell_type_name () const override
	Get the shell type name. More...
Public Member Functions inherited from mauve::runtime::AbstractCore
	AbstractCore ()
	Default constructor. More...
virtual	~AbstractCore () noexcept
	Default descructor. More...
virtual std::string	to_string () const
std::string	type_name () const
	Get type name. More...
Public Member Functions inherited from mauve::runtime::HasProperty
const std::vector< AbstractProperty * >	get_properties () const
	Get the properties of the shell. More...
std::size_t	get_properties_size () const
AbstractProperty *	get_property (std::string const &name) const
AbstractProperty *	get_property (int index) const

Additional Inherited Members
Protected Member Functions inherited from mauve::runtime::Core< MuxPriorityReadPortShell< runtime::StatusValue< T >, N > >
	Core ()
	Default constructor. More...
virtual	~Core () noexcept
	Default descructor. More...
MuxPriorityReadPortShell< runtime::StatusValue< T >, N > &	shell () const
	Access to the instantiated shell. More...
Protected Member Functions inherited from mauve::runtime::HasProperty
template<typename T >
Property< T > &	mk_property (std::string const &name, T init_value)
	Create a new property. More...
Protected Member Functions inherited from mauve::runtime::WithHook
virtual void	cleanup_hook ()
	Hook function called when cleaning the shell. More...
virtual bool	configure_hook ()
	Hook function called when configuring the shell. More...

Detailed Description

template<typename T, int N>
struct mauve::base::MuxPriorityReadPortCoreWithStatus< T, N >

Priority Multiplexer shell for read ports with status.

Template Parameters

T	type of ports data
N	number of read ports to mux

Member Function Documentation

template<typename T , int N>

bool mauve::base::MuxPriorityReadPortCoreWithStatus< T, N >::accept ( const runtime::StatusValue< T > &  t )

overridevirtual

Function to specify when to accept an incoming data.

Parameters

t	incoming data

Returns

true if the data must be forwarded

Reimplemented from mauve::base::MuxPriorityReadPortCore< runtime::StatusValue< T >, N >.
