mauve::base::MuxWriteServiceInterface< T, N > Struct Template Reference

Multiplexer interface with write services. More...

#include <Mux.hpp>

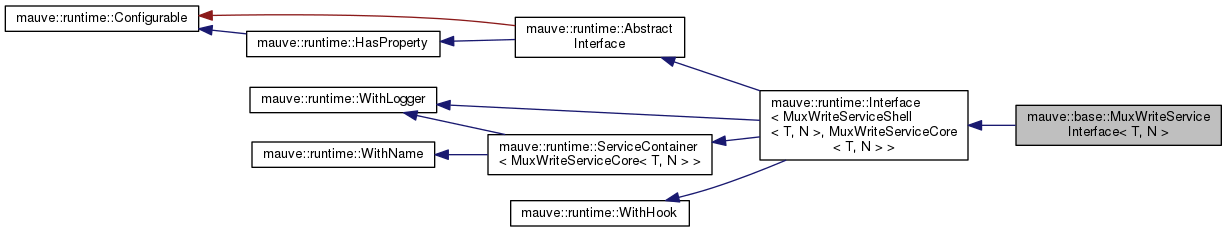

Inheritance diagram for mauve::base::MuxWriteServiceInterface< T, N >:

Collaboration diagram for mauve::base::MuxWriteServiceInterface< T, N >:

Public Member Functions
	MuxWriteServiceInterface ()
	Constructor. More...
Public Member Functions inherited from mauve::runtime::Interface< MuxWriteServiceShell< T, N >, MuxWriteServiceCore< T, N > >
	Interface (Interface const &other)=delete
void	cleanup () overridefinal
	Cleanup the object.
bool	configure () overridefinal
	Configure the object.
MuxWriteServiceCore< T, N > *	core_ptr () const overridefinal
Service *	get_service (std::string const &name) const overridefinal
	Get a service by name.
Service *	get_service (int index) const overridefinal
int	get_service_index (const Service *service) const overridefinal
const std::vector< Service * >	get_services () const overridefinal
	Get the set of services owned by the interface.
std::size_t	get_services_size () const overridefinal
bool	is_configured () const overridefinal
	Get the configuration status of the configurable object. More...
AbstractLogger &	logger () const override
	Get the logger.
std::string	name () const
	Get the name.
Public Member Functions inherited from mauve::runtime::AbstractInterface
std::string	type_name () const
	Get interface type name.
Public Member Functions inherited from mauve::runtime::HasProperty
const std::vector< AbstractProperty * >	get_properties () const
	Get the properties of the shell. More...
std::size_t	get_properties_size () const
AbstractProperty *	get_property (std::string const &name) const
AbstractProperty *	get_property (int index) const

Public Attributes
std::array< runtime::WriteService< T > *, N >	write_services
	Array of write services. More...

Additional Inherited Members
Protected Member Functions inherited from mauve::runtime::Interface< MuxWriteServiceShell< T, N >, MuxWriteServiceCore< T, N > >
MuxWriteServiceCore< T, N > &	core () const
CallService< R, P... > &	mk_call_service (std::string const &name, typename CallServiceImpl< MuxWriteServiceCore< T, N >, R, P... >::action_t action)
EventService &	mk_event_service (std::string const &name, typename EventServiceImpl< MuxWriteServiceCore< T, N > >::action_t action)
ReadService< T > &	mk_read_service (std::string const &name, typename ReadServiceImpl< MuxWriteServiceCore< T, N >, T >::action_t action)
WriteService< T > &	mk_write_service (std::string const &name, typename WriteServiceImpl< MuxWriteServiceCore< T, N >, T >::action_t action)
MuxWriteServiceShell< T, N > &	shell () const
Protected Member Functions inherited from mauve::runtime::HasProperty
template<typename T >
Property< T > &	mk_property (std::string const &name, T init_value)
	Create a new property. More...
Protected Member Functions inherited from mauve::runtime::WithHook
virtual void	cleanup_hook ()
	Hook function called when cleaning the shell. More...
virtual bool	configure_hook ()
	Hook function called when configuring the shell. More...

Detailed Description

template<typename T, int N>
struct mauve::base::MuxWriteServiceInterface< T, N >

Multiplexer interface with write services.

Template Parameters

T	type of ports data
N	number of services ports to mux

Constructor & Destructor Documentation

template<typename T , int N>

mauve::base::MuxWriteServiceInterface< T, N >::MuxWriteServiceInterface

(

)

Constructor.

Member Data Documentation

template<typename T , int N>

std::array< runtime::WriteService<T>*, N > mauve::base::MuxWriteServiceInterface< T, N >::write_services

Array of write services.
