mauve::base::MuxPriorityReadPortInterface< T, N > Struct Template Reference

Priority Multiplexer interface with read ports. More...

#include <MuxPriority.hpp>

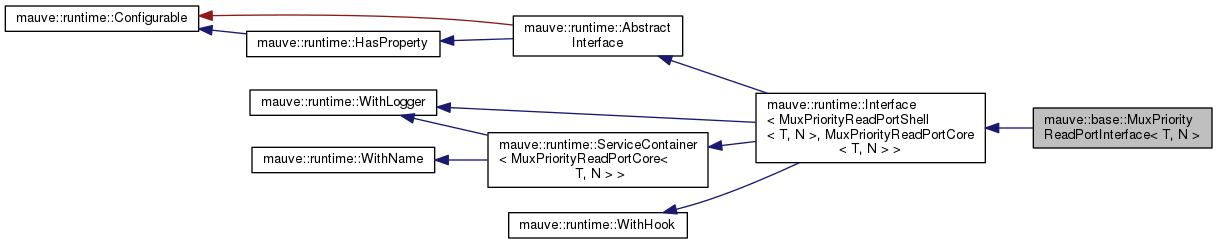

Inheritance diagram for mauve::base::MuxPriorityReadPortInterface< T, N >:

Collaboration diagram for mauve::base::MuxPriorityReadPortInterface< T, N >:

Public Types
using	C = MuxPriorityReadPortCore< T, N >

Public Attributes
runtime::ReadService< T > &	read = this->template mk_read_service<T>("read", &C::read)
	Read service to read the forwarded data.

Additional Inherited Members
Public Member Functions inherited from mauve::runtime::Interface< MuxPriorityReadPortShell< T, N >, MuxPriorityReadPortCore< T, N > >
	Interface (Interface const &other)=delete
void	cleanup () overridefinal
	Cleanup the object.
bool	configure () overridefinal
	Configure the object.
MuxPriorityReadPortCore< T, N > *	core_ptr () const overridefinal
Service *	get_service (std::string const &name) const overridefinal
	Get a service by name.
Service *	get_service (int index) const overridefinal
int	get_service_index (const Service *service) const overridefinal
const std::vector< Service * >	get_services () const overridefinal
	Get the set of services owned by the interface.
std::size_t	get_services_size () const overridefinal
bool	is_configured () const overridefinal
	Get the configuration status of the configurable object. More...
AbstractLogger &	logger () const override
	Get the logger.
std::string	name () const
	Get the name.
Public Member Functions inherited from mauve::runtime::AbstractInterface
std::string	type_name () const
	Get interface type name.
Public Member Functions inherited from mauve::runtime::HasProperty
const std::vector< AbstractProperty * >	get_properties () const
	Get the properties of the shell. More...
std::size_t	get_properties_size () const
AbstractProperty *	get_property (std::string const &name) const
AbstractProperty *	get_property (int index) const
Protected Member Functions inherited from mauve::runtime::Interface< MuxPriorityReadPortShell< T, N >, MuxPriorityReadPortCore< T, N > >
MuxPriorityReadPortCore< T, N > &	core () const
CallService< R, P... > &	mk_call_service (std::string const &name, typename CallServiceImpl< MuxPriorityReadPortCore< T, N >, R, P... >::action_t action)
EventService &	mk_event_service (std::string const &name, typename EventServiceImpl< MuxPriorityReadPortCore< T, N > >::action_t action)
ReadService< T > &	mk_read_service (std::string const &name, typename ReadServiceImpl< MuxPriorityReadPortCore< T, N >, T >::action_t action)
WriteService< T > &	mk_write_service (std::string const &name, typename WriteServiceImpl< MuxPriorityReadPortCore< T, N >, T >::action_t action)
MuxPriorityReadPortShell< T, N > &	shell () const
Protected Member Functions inherited from mauve::runtime::HasProperty
template<typename T >
Property< T > &	mk_property (std::string const &name, T init_value)
	Create a new property. More...
Protected Member Functions inherited from mauve::runtime::WithHook
virtual void	cleanup_hook ()
	Hook function called when cleaning the shell. More...
virtual bool	configure_hook ()
	Hook function called when configuring the shell. More...

Detailed Description

template<typename T, int N>
struct mauve::base::MuxPriorityReadPortInterface< T, N >

Priority Multiplexer interface with read ports.

Template Parameters

T	type of ports data
N	number of read ports to mux
